| Technical compliance | European Machinery Directive 2006/42/EC Reference standard: EN 81-41/SIL 3 |
|---|---|
| Drive system | Hydraulic control unit with indirect action by chains |
| Rated speed | 0.15 m/s up to 0.3 m/s |
| Rated load | Up to 400 kg |
| Travel height | 12600 to 13100 mm |
E200
Price
Price Range: Rs. 27Lakh – Rs. 75Lakh

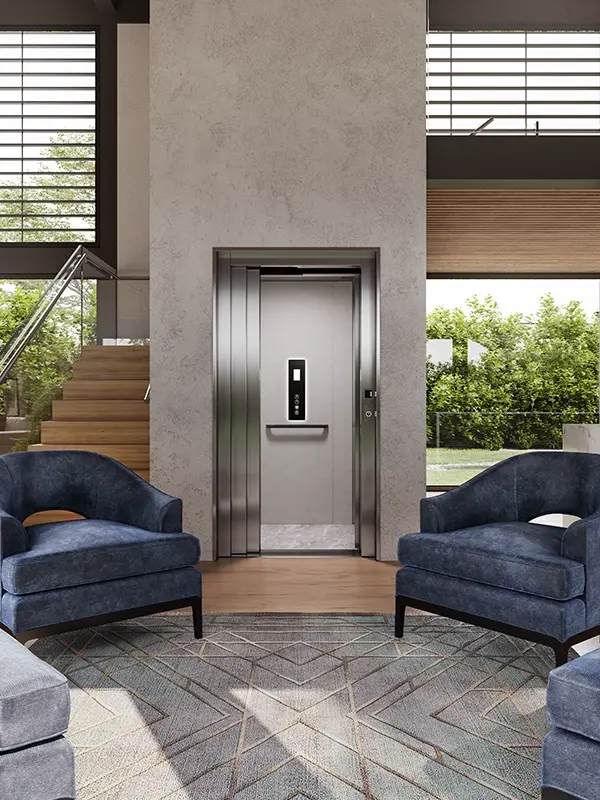

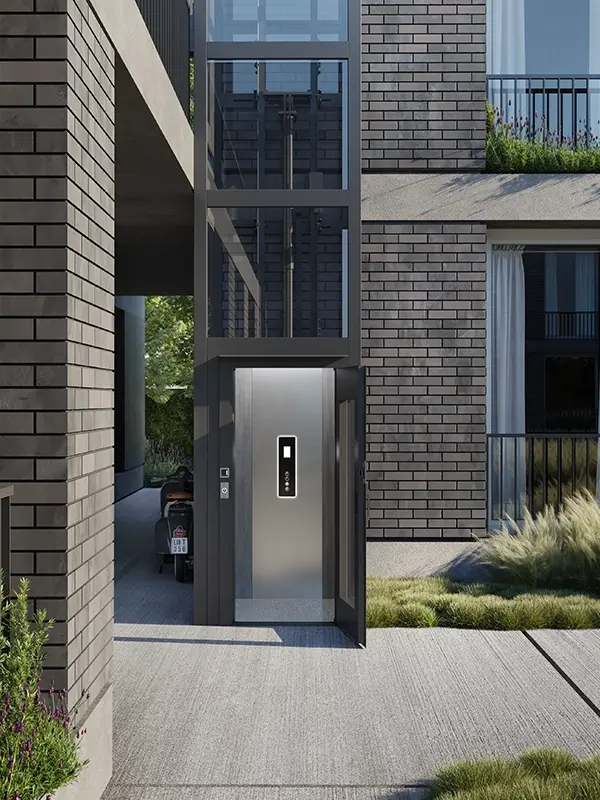

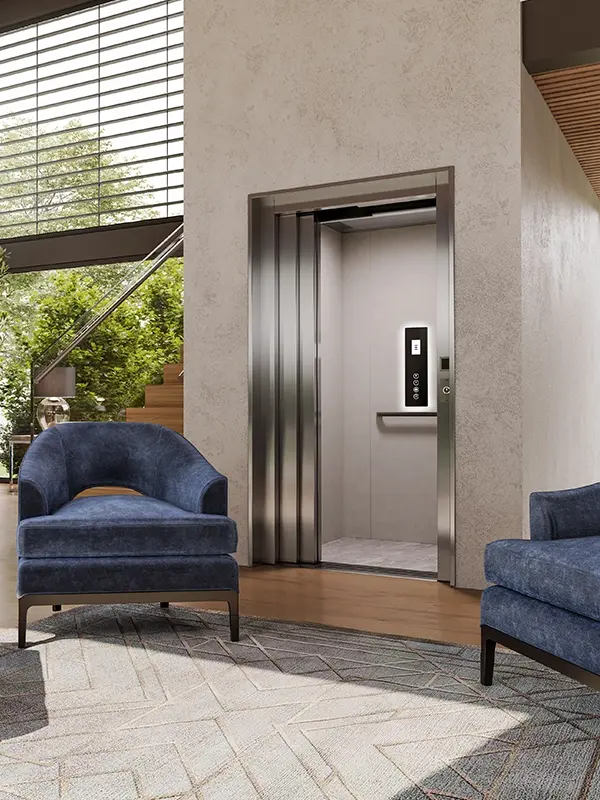

The E200 hydraulic lift was designed to eliminate all of the factors that make a hydraulic lift difficult, such as choppy rides and jerky landings. This feature sets the E200 apart from any other hydraulic lift on the market. Powered by the roller chain mechanism, the E200 has a patented feature called Greaseless Rail (GLR) technology. The rails of the lift car are built of self-lubricating materials in this feature, eliminating the need for oil or grease. It protects the lift’s inner mechanisms from dust and grease damage, and it keeps the E200 smooth and quiet.
Technical Details
Description
The E200 is certified by Safety Integrity Level (SIL) 3 and complies with the European home safety codes EN 81-41 and Machinery Directive 2006/42/EC.
The E200 is engineered to be far ahead of your conventional hydraulic lift. Our E200 hydraulic lift delivers a ride experience that is smooth and relatively bump-free and stands tall in its market segment. The E200 operates on a roller chain mechanism. It has a unique patented feature known as the Greaseless Rail (GLR) technology. In this feature, the rails of the lift car are made with self-lubricating materials, thereby negating the use of oil or grease. It helps protect the inner mechanisms of the lift from dust and grease damage and maintains the smoothness and quietness of the E200.
As for the safety of the E200, there are plenty of aspects that protect you and your loved ones. The E200 is certified by TÜV SÜD, Germany and Safety Integrity Level (SIL) 3. It complies with the European home safety codes EN 81-41 and machinery directive 2006/42/EC. Since these are strict regulations that every home elevator in Europe should follow, the E200 has five safety layers embedded in it. The E200 can travel at speeds of 0.15 ms to 0.3 ms and can go up to 13,100 mm. It can also support a maximum load of 400 kg and is ideal for use by 3-4 people at a time.
This hydraulic lift can be installed for ground plus five floors, bringing the maximum stops to six. Based on this factor, the cost of the hydraulic lift will fluctuate. Customisations are another aspect that will change the final cost of the E200 hydraulic lift. We offer clients the option to customise the doors, shaft, indoor/outdoor and interiors of the lift. The more tailored your customisations are, the more your final cost will be influenced by them. Our hydraulic lift does not need a deep pit, machine room or headroom. It is also quite energy-efficient. It operates on a single-phase power supply and consumes 1.45 kW for ascending and 0 kW for descending.
Specification
Commonly Asked Questions
1. What is the cost of home elevators in India?
In India, the cost of home elevators typically ranges from Rs. 48Lakh and can go up to even Rs. 1 crore 3 lakh. There are many reasons for this wide-ranging figure. First and foremost, the more basic and simple your home elevator, the lesser will be the cost. But if you want to opt for high-end and technologically advanced home elevators, then naturally the price will increase too.
Our home elevators have been engineered in Germany and made in Italy and conform to European home safety codes. They are quality and safety certified, the first to do so in the Indian elevator market. From hydraulic elevators and cogged belt elevators to stairlifts, discover a range of imported luxury home elevators with Elite Elevators.
2. What is the price of a cogged belt home lift in India?
A cogged belt home lift in India will typically cost you between Rs. 48Lakh – Rs. 1 crore 3 lakh.
3. What is the cost of premium home lifts in India?
The cost of premium home lifts in India starts at Rs. 48Lakh – Rs. 1 crore 3 lakh. At Elite Elevators, you can get luxury German-engineered and Italian-made home lifts.
4. What are the factors that change the price of a home lift?
The final number of stops, type of view (blind or panoramic), number of doors, flooring, ceiling, interior walls, supporting structure and type of drive are the major factors that change the price of a home elevator.
At Elite Elevators, you can get a custom-built home elevator. Our home elevators are imported from Italy and engineered in Germany. They have a worldwide reputation for being the safest and most technologically-adept in the market. For more details, call us at +91 93616 13131.
